Industrial Processing Active EEG Electrodes , Disposable EEG Electrodes Environmental Monitoring

Name: Industrial Processing Active EEG Electrodes Disposable EEG Electrodes Environmental Monitoring
Brand: BESDATA
Price: 1 USD

Industrial Processing Active EEG Electrodes , Disposable EEG Electrodes Environmental Monitoring Manufactures

Brand Name : BESDATA

Model Number : SE85

Certification : CE

Place of Origin : SHZNZHEN

MOQ : 2 pcs

Price : negotiable

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 20000 pcs per month

Delivery Time : 5~7 days

Packaging Details : normal carton

Pellet Electrode : Sintered Ag/AgCl

Cup Diameter : 10mm/8mm/6mm/4mm/ Pre wired

Cable Material : TPU

connector type : Din 1.5mm

Contact Now

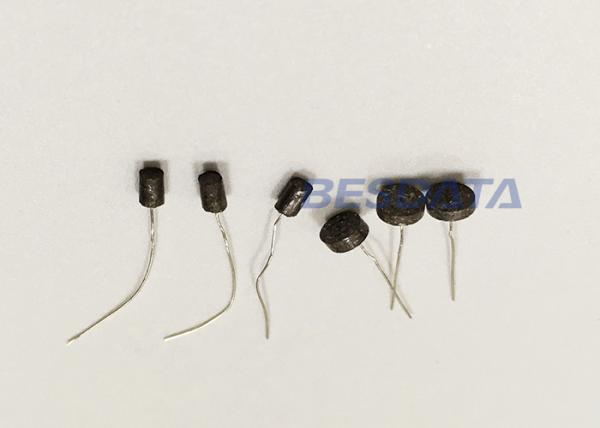

Sintered Ag AgCl electrode Reference Electrodes For Industrial Processing And Environmental Monitoring

The potential Silver/Silver Chloride has a quick response and is extremely stable, making it perfect as a reference electrode for monitoring corrosion, for example in the hulls of boats or underground pipes.

Sintered Ag/AgCl reference electrodes are used to measure structure/electrolyte potentials on steel structures in seawater in the application of cathodic protection, as well as many applications in industrial processing and environmental monitoring.

We have experience in corrosion monitoring and corrosion protection methods such as cathodic protection.

properties of different types of electrodes when used in combination with a chloride containing gel

Electrode	offset voltage,resistance and polarization	Rate of drift	Noise level	suitability for DC-coupled recording	long time contant AC-coupled recording
sintered AgCl	very low	very low	low	excellent	excellent
disposable AgCl	low	very low	low	good	excellent
silver	variable	variable	low	poor
Gold-plated silver	variable	variable	low	poor	good
platinum	very high	n.a	low	poor	good
stainless steel	very high	n.a	medium	poor	medium
Tin	high	high	high	poor	poor

Industrial Processing Active EEG Electrodes , Disposable EEG Electrodes Environmental Monitoring
